300mpm Cable Extrusion Machine , Polypropylene Filler Rope Wire Extruder Machine

Brand Name : I-suntop

Model Number : I-65

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.50working days

Packaging Details : Plastic film+wooden box

Application : Extrusion for ripcord

Extrusion Material : Polypropylene

Design Speed : Max.300m/min

Extrusion daimeter : Ф1.5-Ф4mm

Voltage : 3-phase 5wire 380V 50HZ

Screw type : 65mm single type

Contact Now

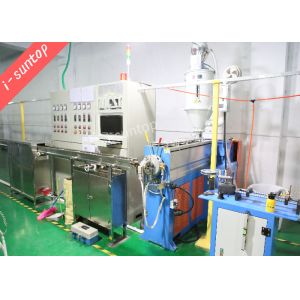

65mm Fiber Optic Cable Polypropylene Filler Rope Extruison Production Line

i-suntop fiber optic cable machine 20220228.pdf

1. Application for Polypropylene Filler Rope Extruison Production Line:

The line is used for extrusion of fiber optic cable filling rope.

2. Specification of Polypropylene Filler Rope Extruison Production Line:

structure speed Max.300m/min

Extrusion diameter

Ф1.5-Ф4mm

Main extruder motor

30KW
Extrusion rotation speed

1500r/min
Screw diamter Ф65

Screw L/D

25:1

Electrial control

PLC+IPC

Power supply requirements

50KW, AC380V ±10% 50HZ three-phase five-wire

3.Line Configuration for Polypropylene Filler Rope Extruison Production Line

Items Qty.
Ф65 main extruder 1set
100kg hopper and 300G dryer 1set

Masterbatch mixer

 1set

IPC+PLC program electricity control cabinet

 1set
4 m stainless steel hot water tank + water tank 1set
8 m stainless steel cold water tank and water tank 1set
laser diameter guage 1set
double wheel capstan 1set
60m accumulator 1set
single head take up and traverse machine 1set
