Photoelectric Composite Cable SZ Stranding Line

Name: Photoelectric Composite Cable SZ Stranding Line
Brand: I-suntop
Price: 1 USD

Wholesale Photoelectric Composite Cable SZ Stranding Line from china suppliers

Brand Name : I-suntop

Model Number : I-800/12

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.50working days

Packaging Details : Plastic film+wooden box

Usage : manufacturing for Photoelectric Composite Cable

Twisting Material : power wire and FRP

SZ stranded maximum speed : Max.1800rpm

SZ stranded pitch : 50mm-800mm

Production Speed : Max.30m/min

Warranty : 1year,longtime maitenance

Contact Now

Photoelectric Composite Cable SZ Stranding Line

i-suntop fiber optic cable machine 20220228.pdf

1. Description for Photoelectric Composite Cable SZ Stranding Line:

The use of fiber-optic cable is continuously increasing. To respond to the various technology requirement, we have developed a wide range production lines. The line is used for SZ stranding of .power wire and FRP

2. Specification of Photoelectric Composite Cable SZ Stranding Line:

Maximum diameter of cable core	ø20mm
Loose tube diameter/quantity	(Ф2～Ф12.0)mm/8
pay-off reel specification	PN800-PN1200
Take-up reel specification	PN800-PN1600
Production speed	Max.30m/min
Structural speed	50m/min
Sz stranding pitch	50-800mm(SZ direction)
SZ stranding angle	4π-24π
Max revolution speed of SZ stranding heads	MAX. 1800r.p.m
Max revolution speed of cotton wrapping head	MAX.4000r.p.m
Maximum diameter of the reinforce core	ø6mm
The reinforce core pay-off reel specification	PN800-PN1600
Additional loss	Maximum 0.02 dB / km (wavelength 1550 nm) average 0.01 dB / km (wavelength 1550 nm)

4. Main items for Photoelectric Composite Cable SZ Stranding Line:

Items	Qty.
800-1250mm active pay off	1set
Φ800 tension unit	1set
Φ800-1200 loose tube Pay-off	12sets
Steel wire guiding device	1set
Jelly filling device	1set
Cable cores collecting device	1set
SZ oscillator	1set
Dual wheel concentric cross-binder	1set
Water blocking tape pay-off(optional)	1set
Single wheel concentric cross-binder(optional)	1set
800 double wheel Capstan	1set
800 tension device	1set
1400 take up ( ground gantry type option available)	1set
IPC+PLC program electricity control cabinet	1set

Product Tags:

Composite Cable SZ Stranding Line

Photoelectric SZ Stranding Line

1800rpm Stranding Line

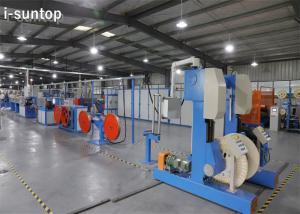

Photoelectric Composite Cable SZ Stranding Line Images
